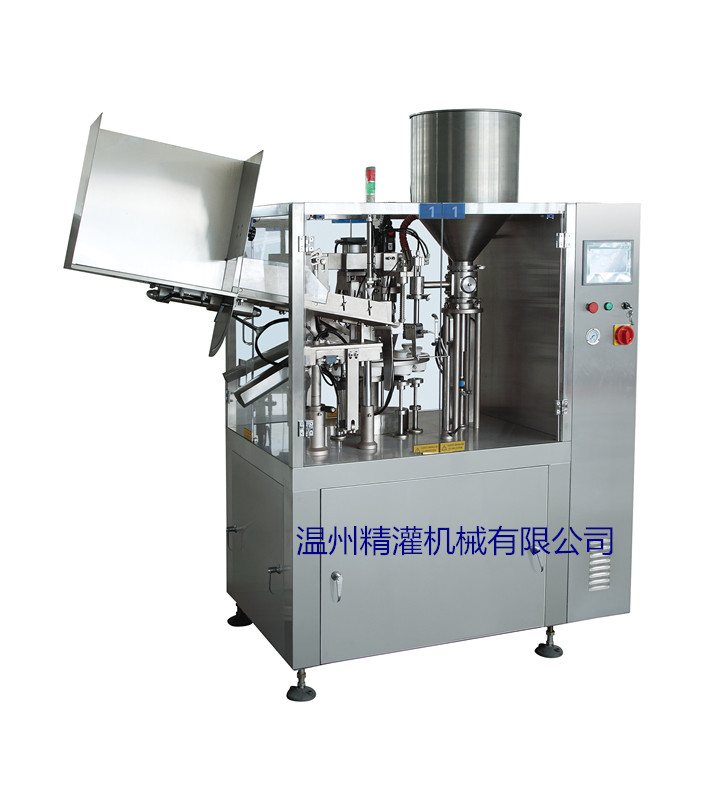

特點及參數 Features and parameters
•適用于：塑料復合管及鋁塑復合管
•Applicable to plastic composite tubes and aluminum plastic composite tubes
•運轉速度：60/min/(max)
•Operation speed:60/min(max)
•灌裝容量：5-250ml
•Filling volume:5-250ml
•灌裝精度：≤±1%
•Filling precision:≤±1%
•適合軟管長度：50-210mm
•Suitable tube length:50-210mm
•適合軟管直徑：ø13-50mm
•Suitable tube diameter ：ø13-50mm
•喂管系統：斜掛式自動整列喂管倉
•Tube feeding system:obliquely hanging type automatic lining-up tube feeding storehouse
•選配：外置式制冷水機
•Optional:externally allocated refrigerator
•選配：夾層料桶保溫裝置
•Optional:jacket and barrel heat preservation device
•選配：料桶內部攪拌裝置
•Optional:blending device inside the barrel
•選配：自動控制上料裝置（泵）
•Optional:automatically controlled material feeding device(pump)
•選配：成品管輸出傳送裝置
•Optional:finished tube conveyor
適用于：塑料復合管及鋁塑復合管
Applicable to :plastic composite tubes and aluminum plastic composite tubes
|
